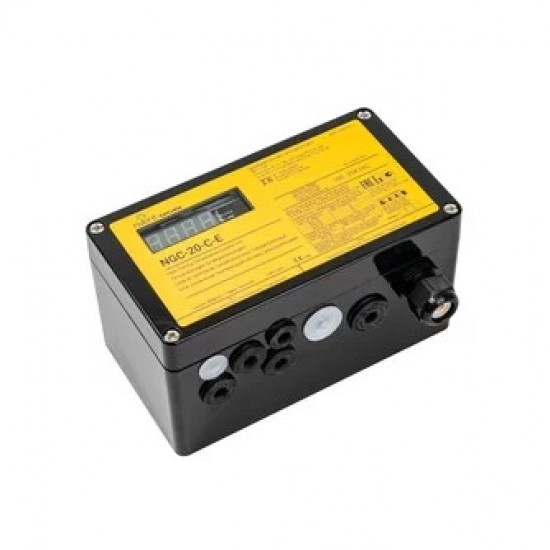

Raychem NGC-20-C-E Control Unit

Original price was: £1,900.00.Current price is: £950.00. Incl VAT: £1,140.00

The RAYCHEM NGC-20-C-E is a field-mounted electronic heat-tracing control unit for single-phase circuits up to 25 A. It features local temperature control, central monitoring via RS-485 or Bluetooth, an IP66 rating, and hazardous-area approvals (ATEX/IECEx). This model has been superseded by the Elexant 5010i.

For large quantities, including over 100m of cabling, contact us to discuss contract pricing and credit accounts.

8 in stock

Description

Key Specifications
  • Voltage Supply: 100–254 Vac (single-phase, up to 25 A)
  • Control Range: –200°C to +700°C
  • Enclosure & Protection: PPE material with an IP66 rating (approx. 230 × 120 × 110 mm, 2.2 kg)
  • Communication: RS-485 and Bluetooth Class 1 (supports up to 247 units per port)
  • Hazardous Approvals: ATEX and IECEx certified for use in explosive atmospheres (Zone 1, 2, 21, 22)
  • NGC-20-C-E: Standard electronic control unit without an integrated safety temperature limiter (Part No. 1244-007035)
