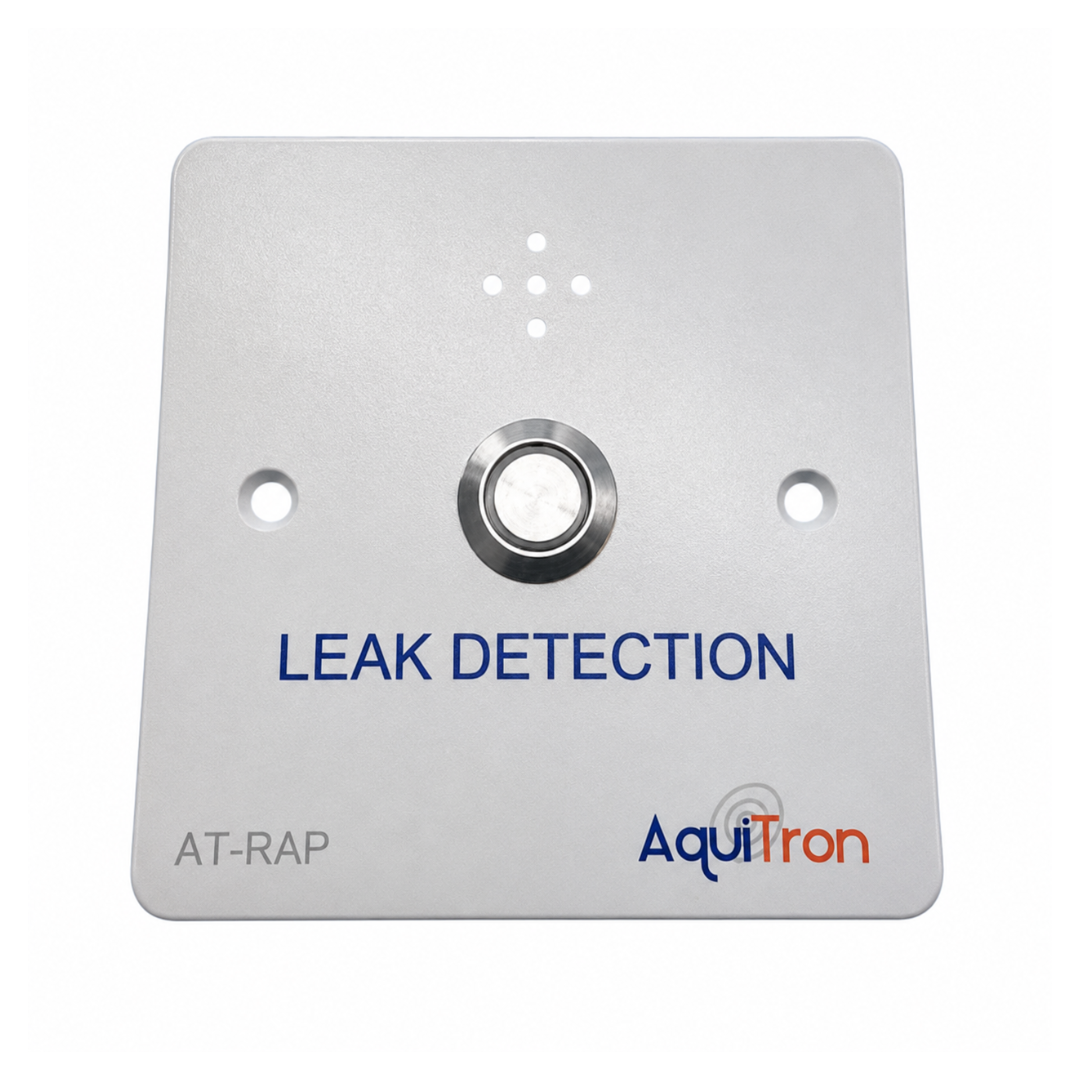

AT-RAP AquiTron Remote Alarm Panel (230v)

SKU 2336 AT-RAP Category


The AT-RAP remote alarm panel interfaces to all the AquiTron and TraceTek leak detection panels. The AT-RAP incorporates an audible and visual (LED) indication when an alarm is present with a push button to mute the audible alarm.

For large quantities, help with installation or specification, contact us to discuss contract pricing and credit accounts.


The AT-RAP from Aquilar operates on a closed signal from the volt free contact within the master control panel. The push button incorporates a bi-colour LED to indicate the operating status of the unit. Designed to fi t on a standard single gang socket box (not included) the AT-RAP can be easily flush mounted to a wall or other flat surfaces. Its small size makes it ideal for installation where space is at a premium, or where an unobtrusive appearance is desired. The AT-RAP can be easily muted by pushing the central button. The unit self-resets once the alarm has been reset at the main alarm panel. If visual indication only is required, the sounder can be disabled via an internal jumper.

  • Audible alarms, 90dB @ 1 metre c/w mute switch
  • Power 12/24V ac/dc
  • Can be located a maximum of 500 metres from the main panel
