£80.00 Incl VAT: £96.00

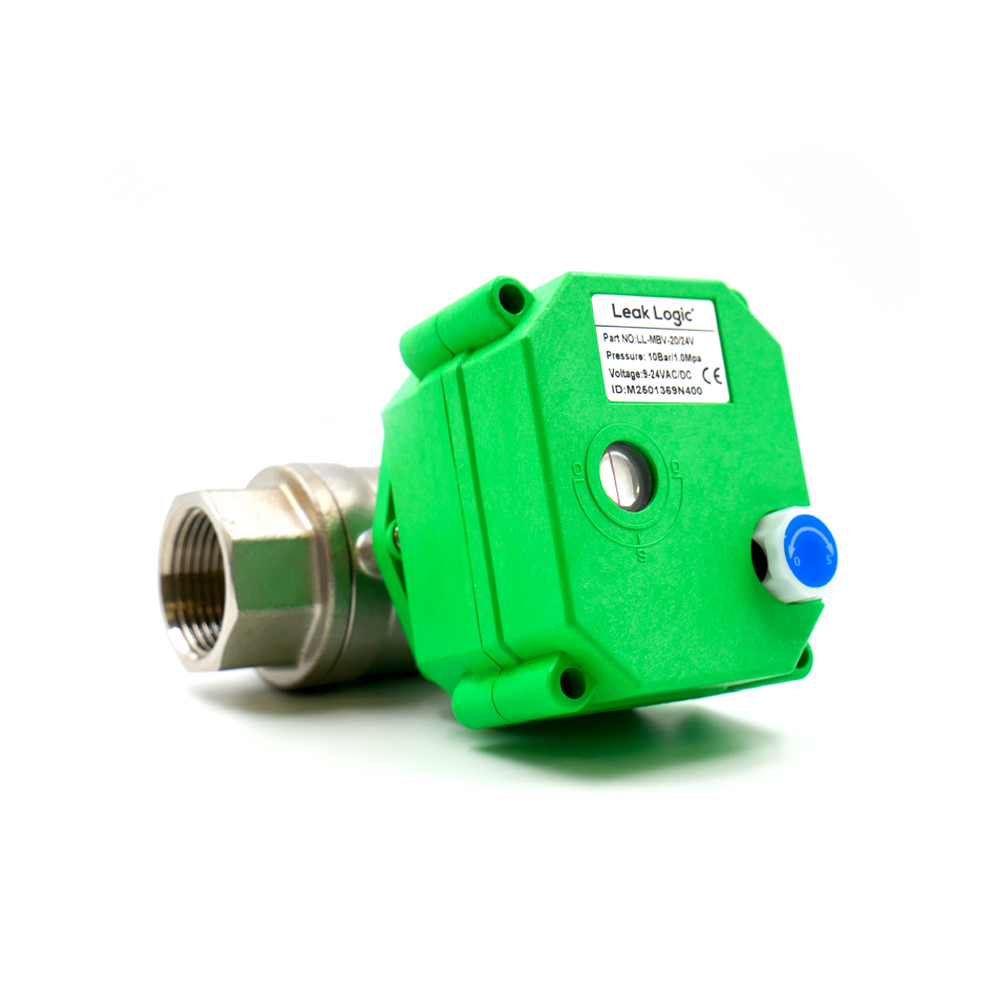

The Leak Logic motorised ball valve provides a reliable and versatile solution for controlling hot and cold water systems, in a compact package. Comes with visual position indicator to clearly see the current position of the valve as well as manual override. The failsafe actuator automatically discharges an internal capacitor to close the valve when powered off.
For large quantities, help with installation or specification, contact us to discuss contract pricing and credit accounts.
Valve size: 3/4″ (DN20) – Adaptable to 22mm pipe with brass fittings
Valve body material: 304 stainless steel
Power: 12-24V AC/DC
Operating power: 5 W
Holding power: 0.22 W
Open/close time: 6 s
Cable length: 3 m
Torque: 2 Nm
Bar Pressure: 0-10 Bar
Cycle life: 100,000+
Approvals: CE, WRAS, IP67
