Description

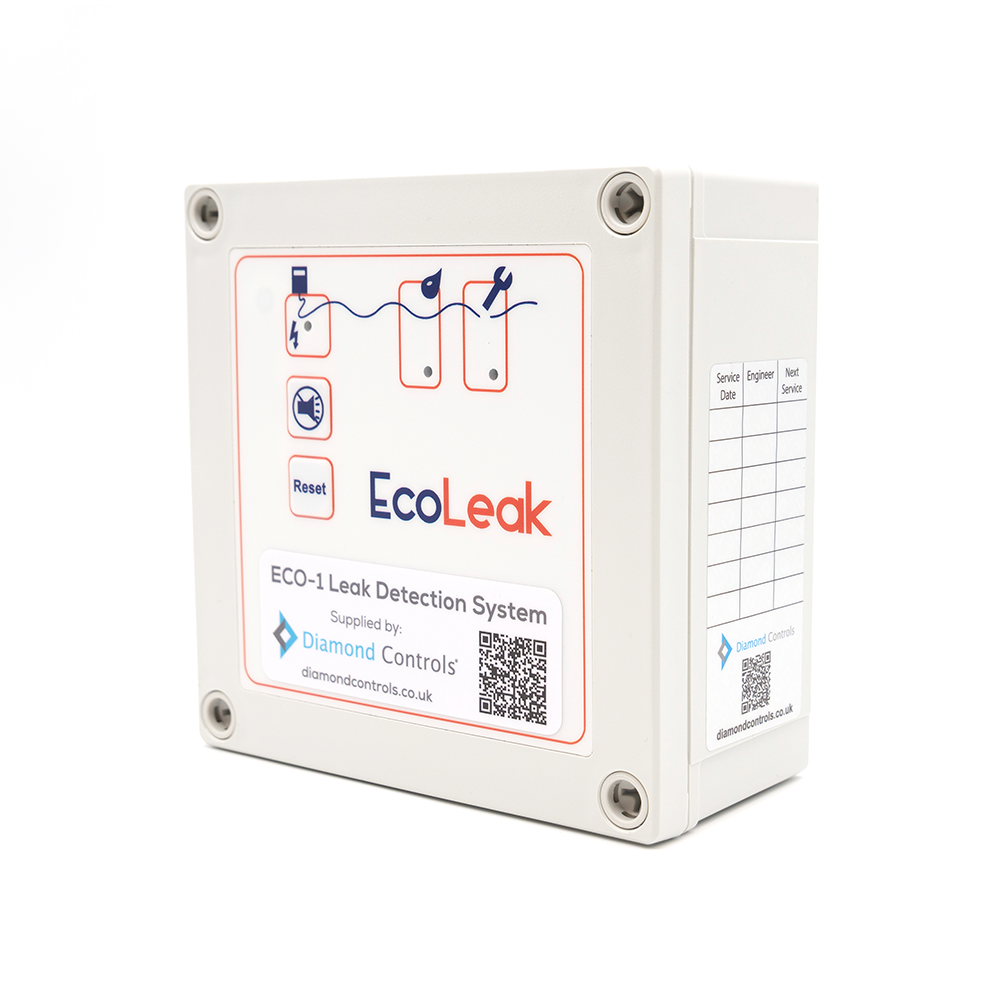

Eco 1 Alarm panel Features & Benefits:
The EcoLeak Single Zone leak detection alarm panel from Aquilar is an affordable leak monitoring solution for commercial or residential properties and is commonly installed in environments such as plant and boiler rooms, bathrooms, kitchens and air conditioning/fan coil unit drip trays.
Use this kit to monitor for water leaks. The Eco 1 alarm panel can provide an automated audible alarm and has visible status indicators via its LED light indicator panel.
Product code: 6124

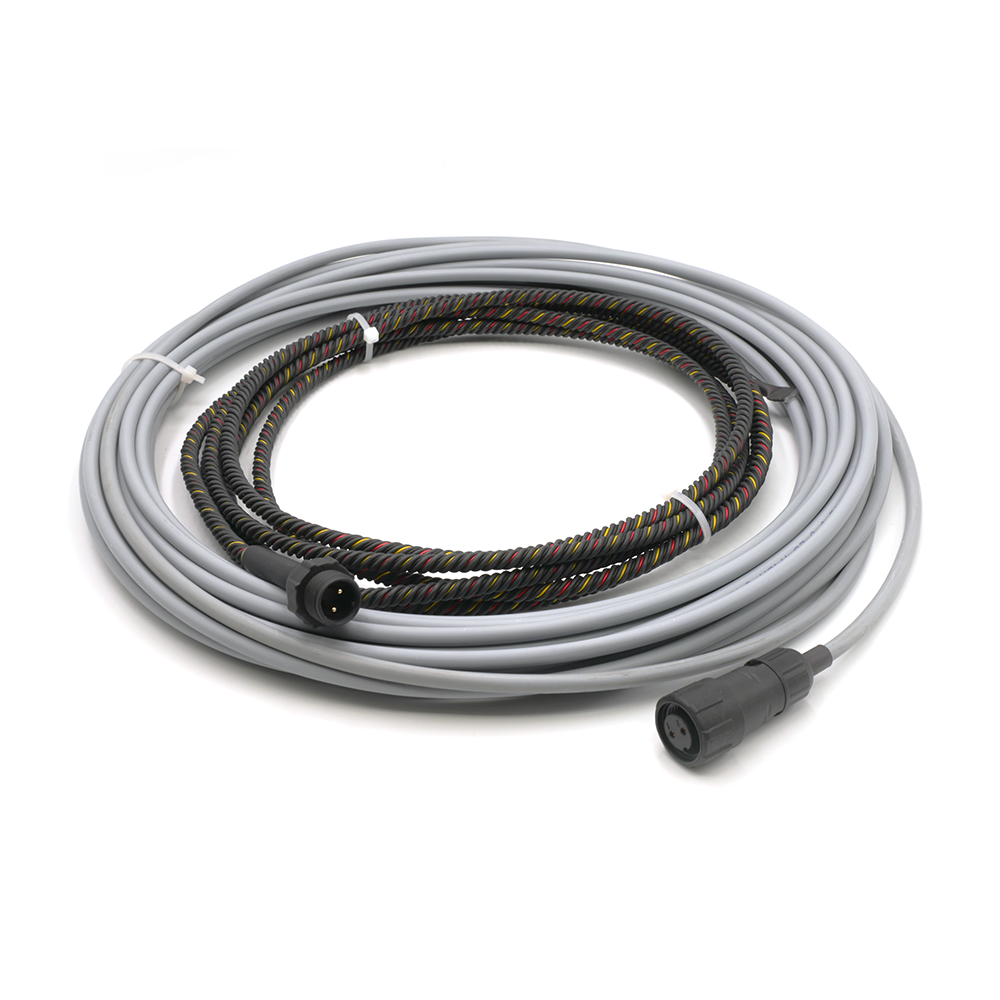

EcoLeak Water Sensing Cable
The EcoLeak sensor cable detects water leaks at any point along the cable length. When used in conjunction with the Eco 1 alarm panel, the cable senses the presence of a water leak, triggers an alarm and indicates the zone location of the leak.
The cable for this kit is a 3 metre length but lengths up to 30 metres can be used with this alarm panel and can be bought via the shop.
The conductive-polymer technology and fluoropolymer construction make EcoLeak sensing cable mechanically strong and resistant to corrosion and abrasion. The cable is constructed of two sensing wires embedded in a fluoropolymer carrier rod. The alarm module constantly monitors the sensing cable for continuity. The rugged cable construction exposes no metal, and enables the cable to be dried within seconds and re-used. It is easily mounted onto walls or other flat surfaces and provides simple, yet effective, warning of leaks via an audible alarm and visible LED.
The EcoLeak product range is available from leading manufacturer’s Aquilar. Trace Heating Supplies is an approved distributor of Aquilar leak detection products.
Product code 6600

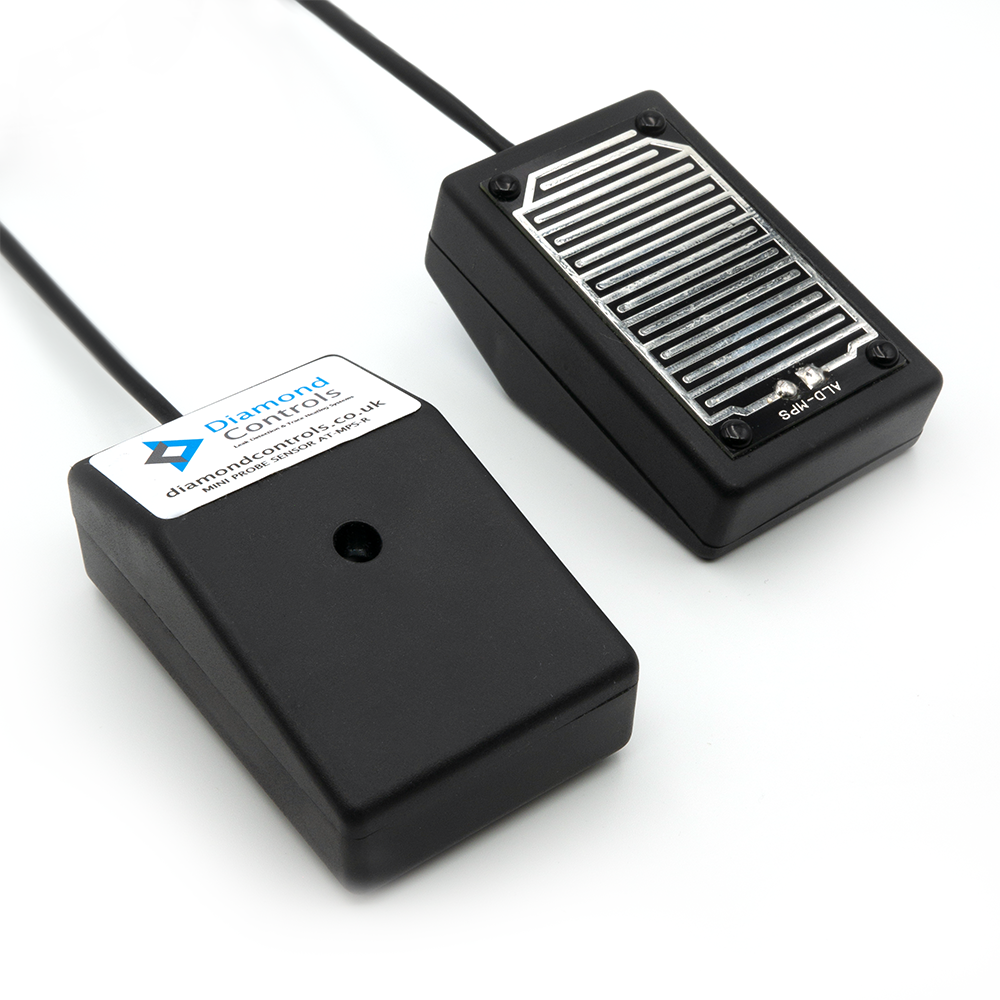

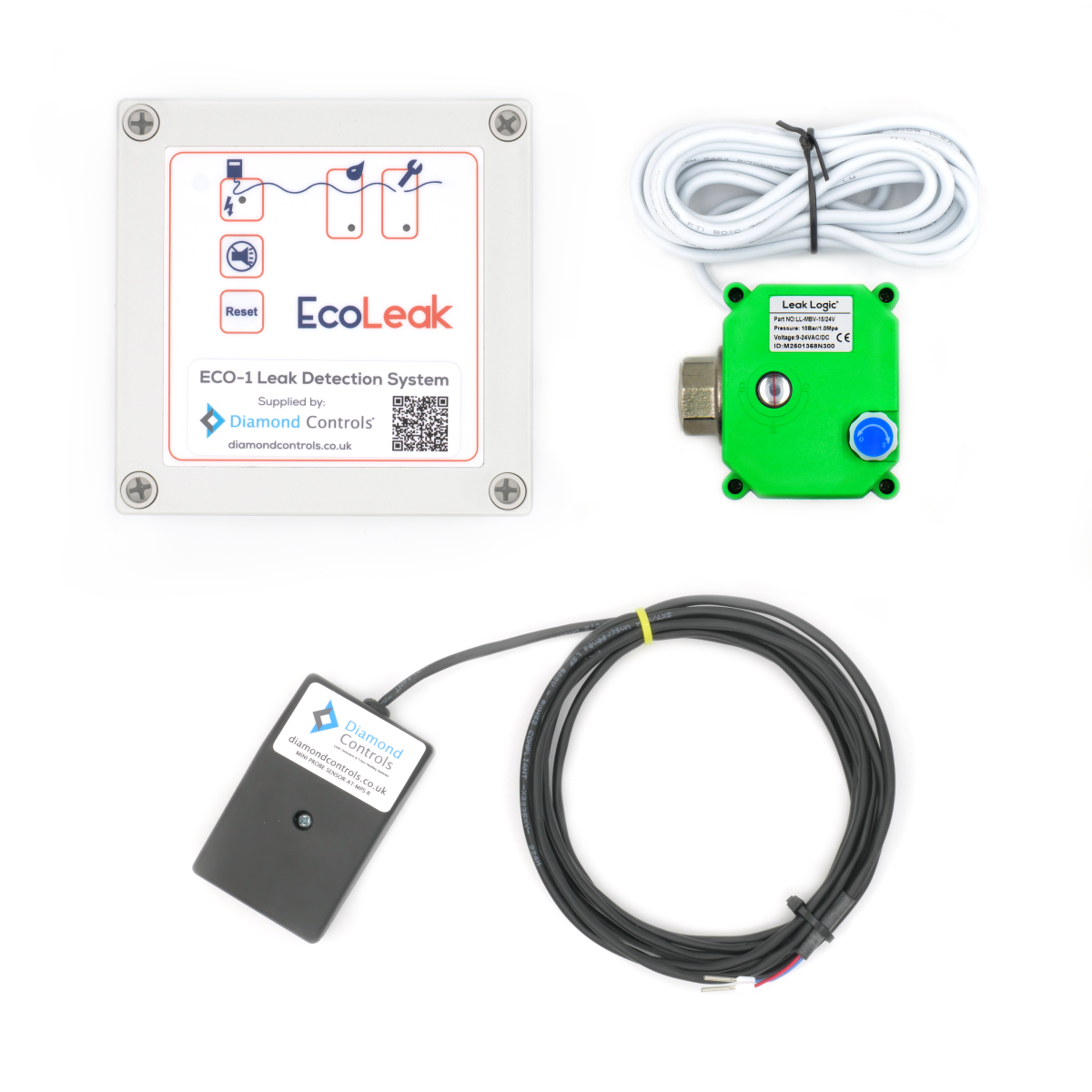

AquiTron AT-MPS-R Mini Water Probe
Primarily designed for small area detection in locations such as kitchens, bathrooms, below showers and cisterns, within boiler rooms and bunded areas and drip trays. A cost effective solution for low point water leak detection.
- Compact size ideally suited for small shallow locations.
- Low profile design.
- Detection between 1.5 & 2mm depth of water (can be adjusted to 0.9mm).
- Dries quickly after being removed from water.
WRAS Motorised Ball Valve
We supply WRAS approved motorised ball valves in two sizes for our tea point kits. Choose your required size using the drop down menu.
We offer a range of water leak detection isolating motorised ball valves which are fail-safe, normally closed valves – meaning it is closed in an un-powered state. In an emergency situation, it is possible to manually override this and open the valve without power.

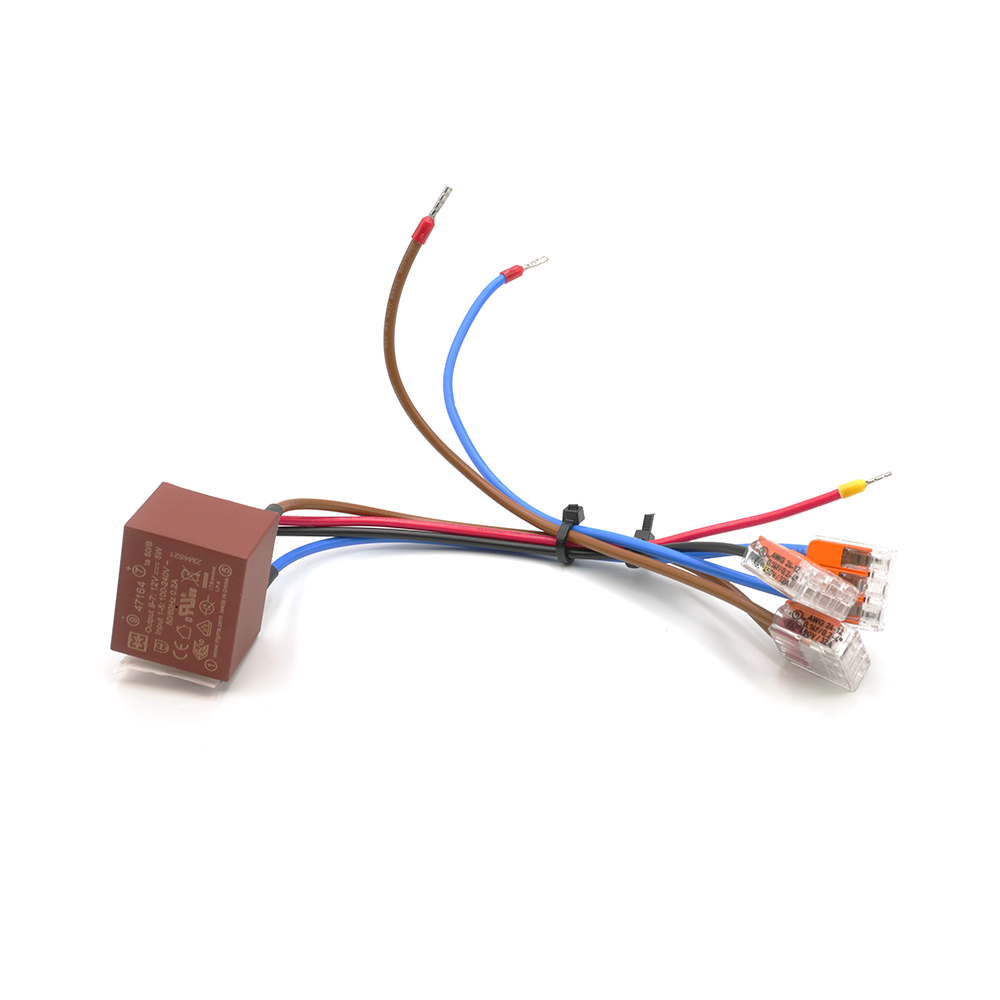

Please note: a 12Vdc power supply is required to operate these valves and this is supplied via a small transformer (DC-TXA), which is supplied with the valve. A full wiring diagram is supplied with the valve.
